Product introduction

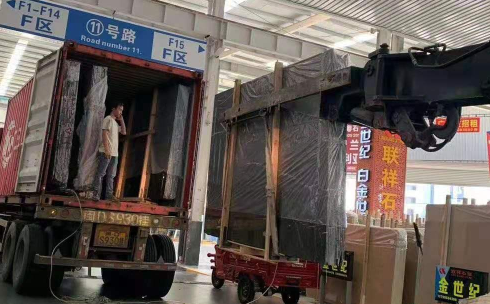

By using the method of "bottom binding+diagonal reinforcement", 2-4 ropes are threaded through the bottom of the stone slab, and then fixed at both ends of the ropes on the string of the double pole lifting arm of the telescopic arm lifting vehicle, and then tightened, it becomes a forklift for loading stone slabs.
However, when lifting, it is important to use specialized lifting ropes, such as high-strength nylon ropes or steel wire ropes, and avoid using ordinary hemp ropes or cloth strips to prevent the ropes from breaking and the goods from falling and being damaged.
Diagram
Paramete
|
Item |
Unit |
WSM1100 |
|
Rated lifting capacity |
Kg |
10000 |
|
Max.lifting height of main hook |
Mm |
7250 |
|
Machine weight |
Kg |
13500 |
|
Length(boom folded) |
Mm |
5100 |
|
Width |
Mm |
2180 |
|
Height |
Mm |
2400 |
|
Turning radius |
Mm |
4000 |
|
Engine model |
/ |
Dongfanghong |
|
Power/rated speed |
Kw/rpm |
84.6/2200 |
Product features

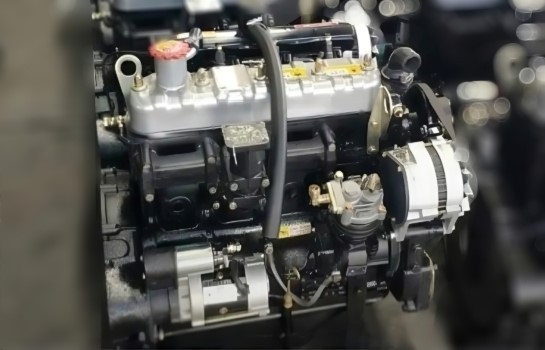

Our company adopts a golden combination of well-known brand engines and domestic transmissions. When transporting large tonnage stone slabs, the engine power is fully released, and the speed will not drop even when climbing heavy loads. At the same time, fuel consumption can be adjusted, saving 15% -20% compared to traditional equipment. If calculated based on the daily 50 lifting operations of the stone factory, the annual fuel cost will be reduced by tens of thousands of yuan, and the long-term operational advantages are significant.

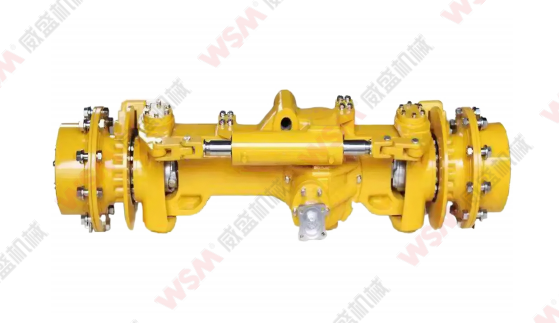

In response to the pain points of "heavy load+complex terrain" in the stone industry, our equipment adopts front axle four-wheel drive, breaking through the bottleneck of traditional forklift two wheel load capacity and improving load capacity. When transporting raw materials on the gravel road in mines, it can avoid one-sided slippage and vehicle overturning, ensuring that after the stone slab is lifted, the whole vehicle is stable on the base and eliminating the risk of rollover.

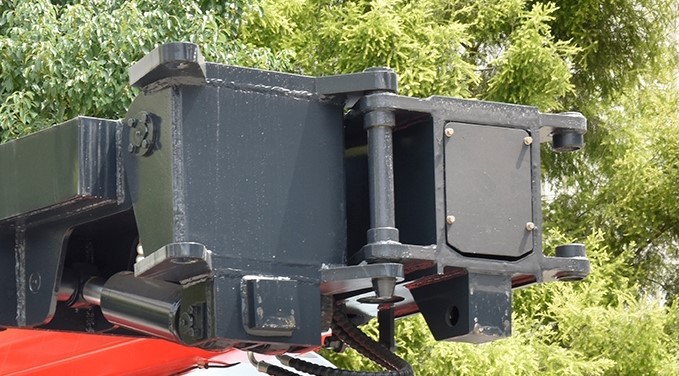

Innovative foldable fork design, folded during non lifting operations, with a clear view for easy site inspection. When stone slabs need to be lifted, they can be quickly unfolded, and with the precise docking of the front double arm crane, the single alignment time is greatly reduced, greatly improving the efficiency of container handling.

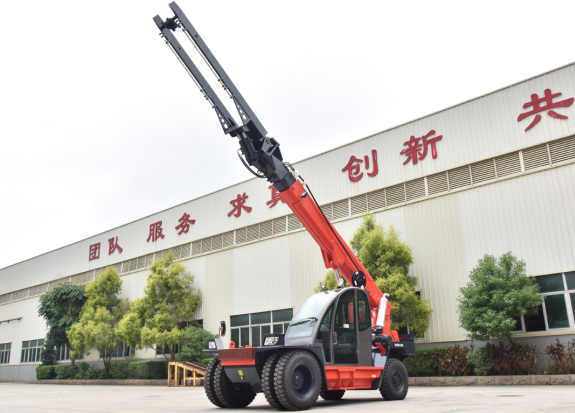

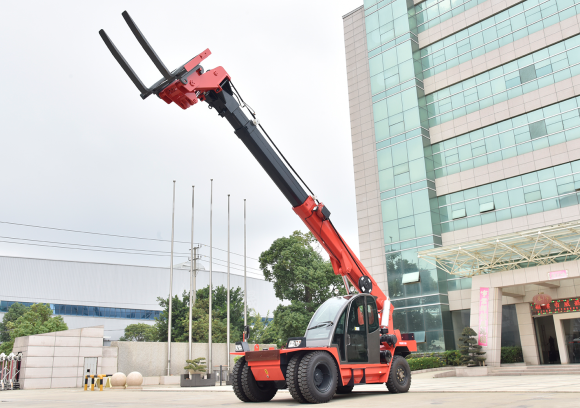

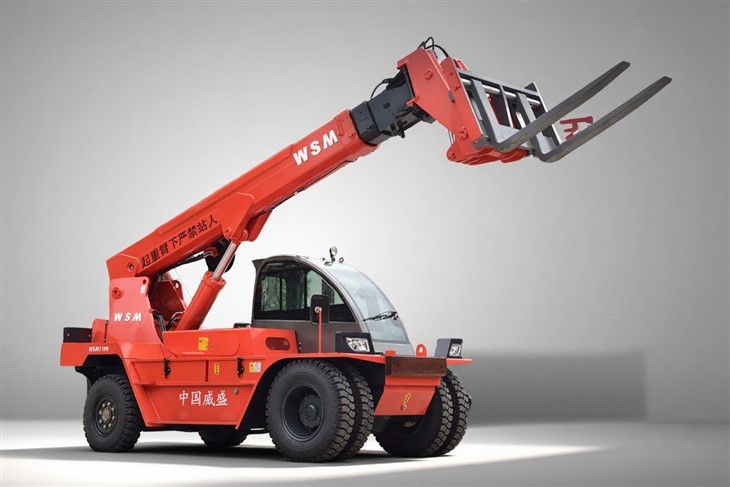

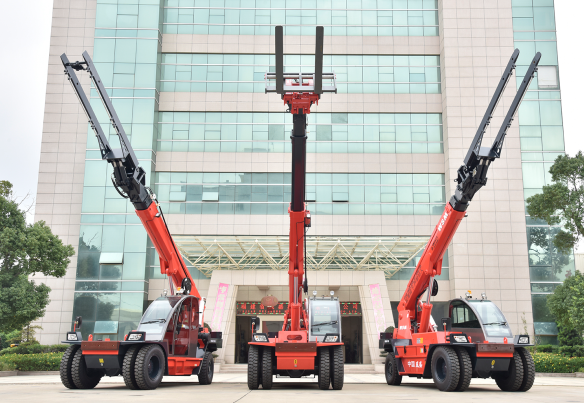

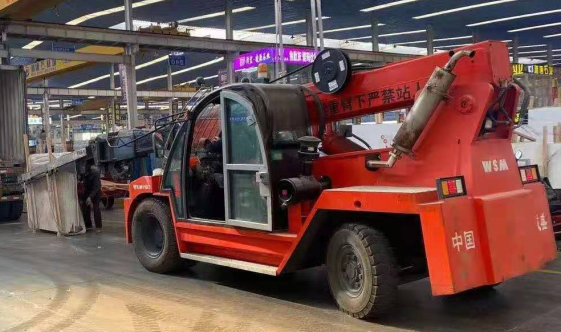

Product image
FAQ
01.In what operating scenarios can it be used?
02.Do you provide accessories and machines for shipment together?
03.Can you give me some discounts?
