| Advantage 6-10 |
6. There is a larger wheelbase and wheelbase. Add the lateral and longitudinal stability of the forklift.
7. Outstanding mobility. The maximum vehicle speed is generally (30-40) km/h. The power factor is above 0.65, the travel speed is good, and it has a climbing ability of 25°~30°.
8. Larger mast inclination. This is all necessary for safe operation and traveling on uneven ground, generally 10°~15° front and 15° backward.

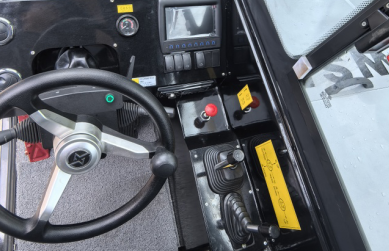

9. The setting of the driver's seat. To ensure that the operator has a better view during loading operations, the driver's seat is generally placed forward. For articulated forklifts, place them on the front frame as much as possible. According to different operation requirements, install a roof-guard type cab with FOPS/ROPS.
10. Walking system. Similar to loaders, there are mechanical transmission (Me), hydraulic shift mechanical transmission (HyC), hydraulic transmission (T/C) and hydrostatic transmission (HYD). The difference is that the full power matching method is selected, and the maximum load is the full-load climbing condition.

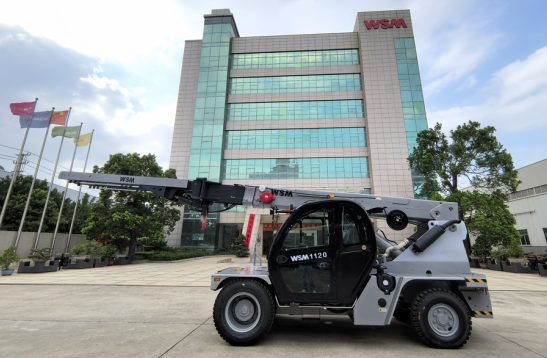

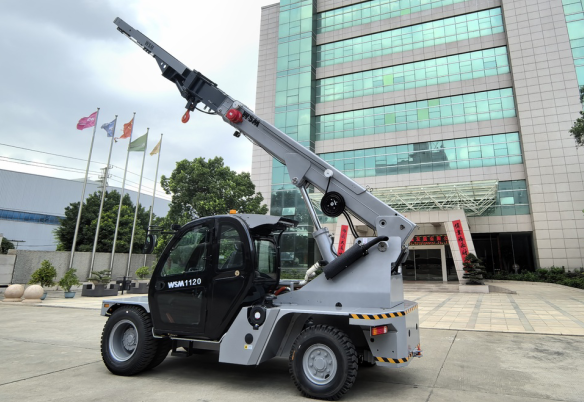

| Pictures |
| Parameter |
Model | WSM1130 | |
Performance | ||
Rated capacity | kg | 13000 |
Loading center | mm | 600 |
Max. Lifting height for main hook | mm | 7350 |
Max. Lifting height for axu hook | mm | 9950 |
Max extension for main hook | mm | 4260 |
Max extension for axu hook | mm | 7550 |
Lifting weight with max extension of aux hook | kg | 3800 |
Variation time(up/down) | s | 11.5/10.5 |
Contraction time(front/back) | s | 14.3/16.5 |
Tilt time(front/back) | s | 4/5 |
Max running speed(no-load) | Km/h | 30 |
Gradeability | ％ | 20 |
Weight | kg | 15500 |
Size | ||
Wheel base B | mm | 3500 |
Front tread base E1 | mm | 1600 |
Rear tread base E2 | mm | 1650 |
Boom length L1 | mm | 3190 |
Length(aux boom fold) L | mm | 5200 |
Width W | mm | 2180 |
Height H | mm | 2400 |
Ground clearance F | mm | 260 |
Turning radius | mm | 4200 |
Main parts | ||
Engine | LR4M3LU | |
Manufacturer | Dongfanghong | |
Capacity | Kw/rpm | 88.2/2400 |
Battery | 2*12V-80AH | |
Driving mode | hydraulic | |
Gear NO.（forward/reverse） | 2/2 | |
Tire | 9.00-20 | |
Service brake system | Caliper disc | |
Parking brake system | Pneumatic manipulator | |
Steering mode | Full hydraulic | |
Optional | ||
Engine model | QSB3.9-C125-30 | |
Manufacturer | Dongfeng Cummins | |
Capacity | kw/rpm | 93/2200 |

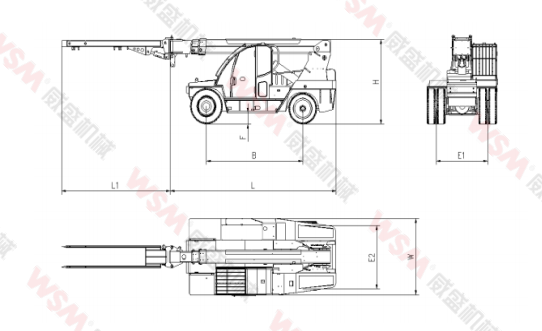

| Diagram |
| Factory |

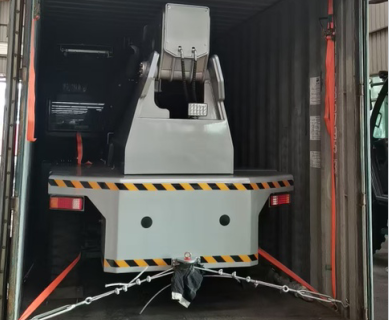

| Customer case |
| Certificate |
| Advantage 3-4 |
3. Using the dual DA control variable system, under compound operating conditions, the speed of the diesel engine will decrease, but the pressure of the hydraulic system will always remain unchanged, so that the traction will not decrease.
4. The optimization of the overall parameters of the whole machine is completed to the greatest extent, so that it can provide the maximum productivity and the highest economic benefits.
