Product introduction
The WSM1100 slab loading telehandler forklift is a heavy-duty handling device designed specifically for the loading, unloading, and transshipment of heavy cargo such as slabs. Beyond slab loading and unloading, the WSM1100 can also be used for stacking and stacking cargo, handling construction materials, assisting with equipment installation and disassembly, and even emergency rescue and disaster relief work.
Product features

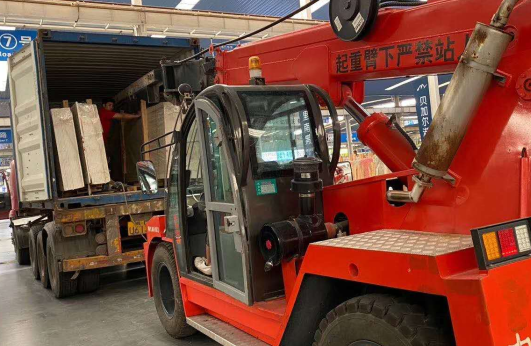

Slabs are heavy and wide. Whether transporting them from a building materials market to a port freight yard or from a factory workshop to a warehouse, the WSM1100, with its off-road-grade maneuverability and compact body, can operate smoothly in narrow, confined areas like workshops and freight yards. This allows for efficient transportation of heavy slabs, overcoming the limitations of slab handling in these scenarios.

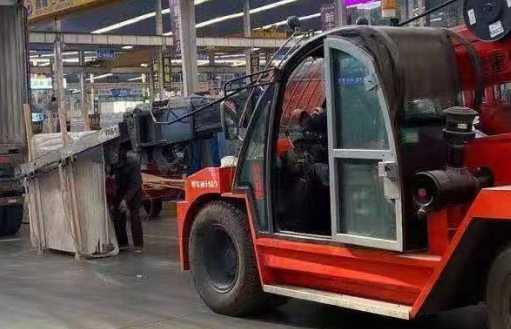

To address the increased structural stability required during lifting due to the large size of the slabs, the telescopic arm adjusts its angle and extends forward into the container. Workers then pass straps under the slabs, pull them up, and hook them onto the telescopic arm's double-bar hooks. Our telescopic arm is constructed from imported steel and incorporates hexagonal welding technology to significantly enhance structural strength and rigidity. This eliminates arm sway when carrying the slab's weight, providing reliable support for stable lifting.

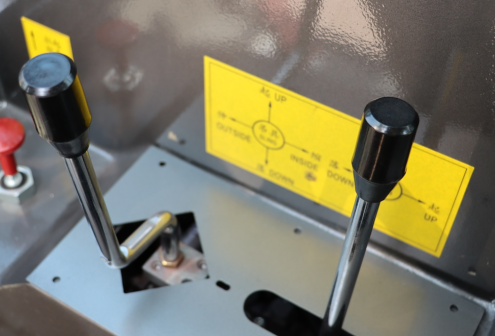

Considering that slab lifting requires frequent boom adjustments, traditional multi-lever operations are cumbersome and difficult for novices to use. We have innovated the "one control two" technology. A single handle can arbitrarily integrate two core actions, eliminating the trouble of switching operating levers, making slab alignment and lifting smoother, and significantly improving work efficiency.
parameter
|
Model |
WSM1100 |
|
|
Performance |
||
|
Rated capacity |
kg |
10000 |
|
Loading center |
mm |
500 |
|
Weight |
kg |
13500 |
|

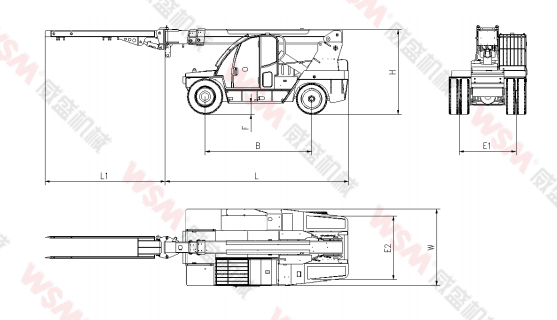

Size |
||
|
Wheel base B |
mm |
3000 |
|
Front tread base E1 |
mm |
1600 |
|
Rear tread base E2 |
mm |
1650 |
|
Boom length L1 |
mm |
3190 |
|
Length(aux boom fold) |
mm |
5100 |
|
Width |
mm |
2180 |
|
Height |
mm |
2400 |
|
Turning radius |
mm |
4000 |
|
Main parts |
||
|
Engine model |
|
QSB3.9-C110-30 |
|
Capacity |
kw/rpm |
81/2200 |
Product parameters and structure will be continuously updated, please refer to the actual product.

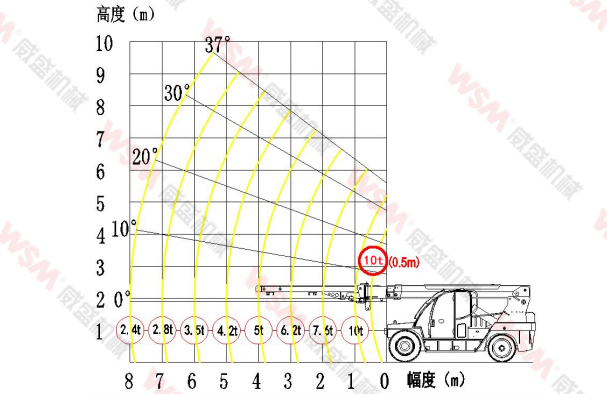

diagram
advantages
- Enhanced Safety and Reliability
Imported hydraulic components ensure core system stability. Multiple safety devices and safety warning signs complement this comprehensive protection system, encompassing core components, structural design, and labeling. This ensures safe operation while effectively reducing the probability of equipment failure.
- Lower Costs
The powertrain features low fuel consumption, reducing daily fuel expenses. The telescopic boom is constructed of high-quality materials and boasts exceptional durability, reducing maintenance frequency and costs, extending the life of the equipment, and lowering overall costs over time.
Company Introduction
Weisheng Machinery specializes in telescopic boom equipment. As one of our flagship product lines, our products have passed numerous quality certifications, including CE and ISO9001. We have provided equipment services to many large-scale factories, mines, and port enterprises. With our own comprehensive production system and after-sales team, we are a reliable partner for every customer.
FAQ
Q:Is it easy for a novice to operate?
A:Our equipment operating tables are compact and simple, and are easy for novices to use, but the prerequisite is that they must undergo professional training and learning.
Q:How big is the area of your company?
A:Our company covers an area of 11,389 square meters.
Q:Is your equipment safe to operate on uneven ground?
A:Of course, our equipment has good off-road performance and can maintain vehicle stability even on uneven ground.
